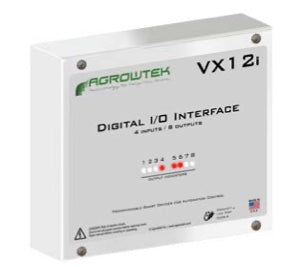

VX12i Digital Intelligent I/O Interface

Versatile IO module with eight (8) 1-Amp transistor (FET) outputs and four (4) analog in-
puts selectable for 0-5V or 0/4-20mA. Six (6) of the outputs are capable of 1kHz PWM. Ideal

for operating DC powered devices, relays & contactors, etc. PWM functions for integration

with dimmable lighting, variable speed fans & motor controllers. Analog inputs allow SXL

liquid sensor connectivity and other third-party sensor integration.
Red LED indicator lights turn on when outputs are activated. Includes standard 1/2” EMT
knock-outs for conduit installation. Compatible with 12-24Vdc power supply.
Digital GrowNET™ port allows MODBUS protocol control on RS485 bus networks for cus-
tom applications. Made in USA
