DAB ESYBOX Mini 3 Elec Water Pressure System

Esybox Mini 3 stands out with a unique, compact, and fully integrated design, unlike any other booster set. Once installed, you’ll quickly notice the true difference in comfort and performance.

The Esybox Mini 3 incorporates advanced DAB technologies to deliver consistent pressure based on system demands, optimizing energy consumption in the process.

It is ideal for use with potable water in domestic and gardening applications. The new 3-rotor model further reduces noise and energy consumption, making water pressure management in your home simpler and quieter than ever.

You can connect up to two pumps, and the system supports remote control via the DConnect service integrated directly within.

TECHNICAL DATA

Operating range:

capacity up to 22 gpm (80L/min); head up to 183 ft (56 m) - (80 psi)

Liquid quality requirements:

clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallized and chemically neutral.

Liquid temperature range:

from 32°F to +95°F (0°C to +35°C) for domestic use
for other use: from 32°F to +104°F (0°C to +40°C)

Maximum suction depth: 26 ft (8 m)
Maximum ambient temperature: +122°F (+50°C)
Maximum pressure: 108 psi (7.5 Bar)
Maximum settable pressure: 79 psi (5.5 Bar)
Motor protection rating: IPX4
Insulation class: F
Installation: Horizontal or vertical fixed position

Approvals:

CSA certification to CSA Standard C22.2 No 108- 14 Liquid Pumps

UL Standard 778- 5th Edition- Motor operated water pumps

NSF/ANSI 61 - 2014a - Drinking Water System Components – Health Effects

NSF/ANSI 372 - 2011 - Drinking Water System Components – Lead Content

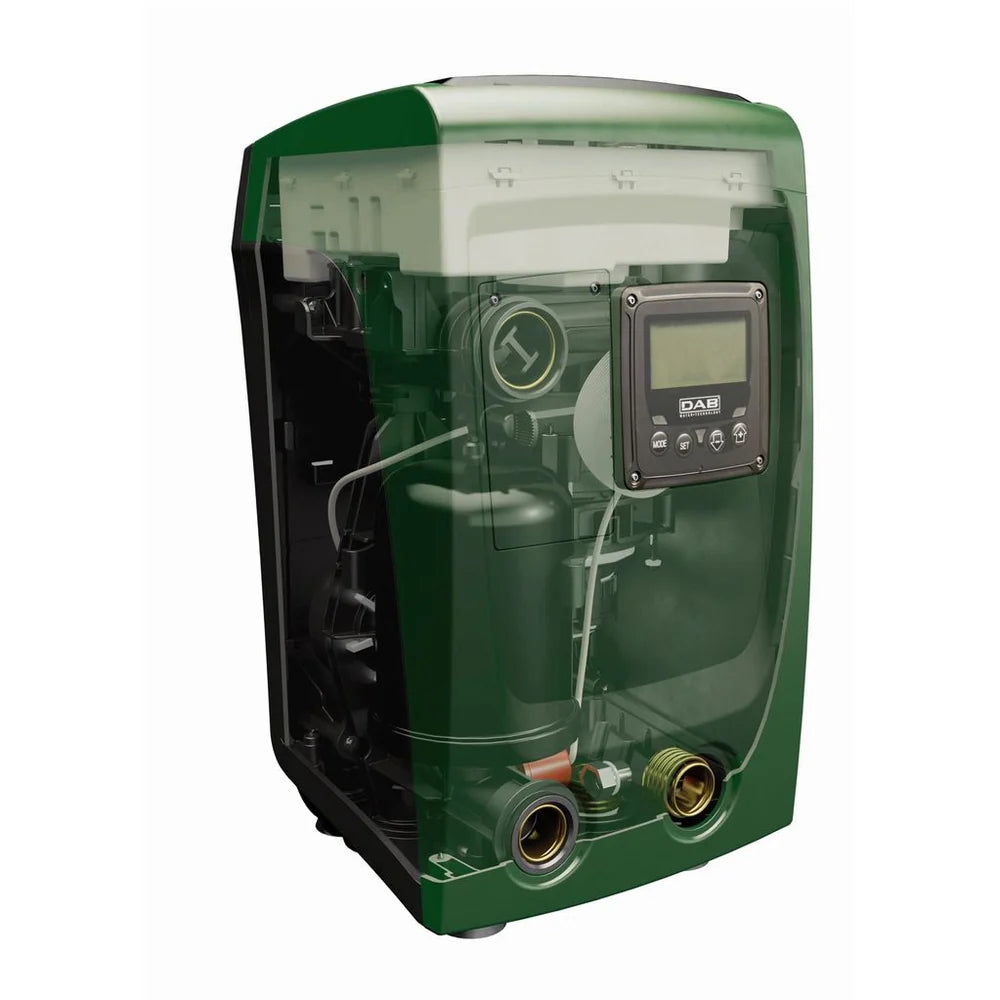

Features high-frequency, self-priming double-impeller pump, advanced inverter management electronics, pressure and flow sensors, an adjustable high-resolution LCD display, a 1/4-gallon built-in expansion vessel, and a cartridge check valve.

With double suction and delivery ports, it supports both vertical and horizontal installation.

Its compact size allows for installation even in tight spaces with minimal air exchange requirements.

The ESYWALL wall bracket enables wall mounting, saving additional space.

The Esybox Mini is a self-priming pump capable of reaching 26 feet in less than 5 minutes.

A water-cooled motor, anti-vibration feet, and advanced electronics ensure this product is both highly compact and comfortable to use.

Equipped with full safety protections, including dry-run and antifreeze safeguards, all parameters and operating statuses are displayed and adjusted via the high-resolution LCD display.

Advantages

Drawing on 40 years of technological expertise, DAB PUMPS proudly presents the Esybox Mini 3, the world’s most compact and advanced booster pump system.

Revolutionary and complete, the Esybox Mini 3 offers a new installation experience, whisper-quiet operation, and peak performance.

It is the ideal solution for addressing water pressurization needs in residential settings.

Leveraging DAB’s most advanced technologies, the Esybox Mini 3 maintains consistent pressure based on actual demand, optimizing energy use.

Thanks to its versatility, the Esybox Mini 3 can be installed virtually anywhere—even under the kitchen sink.

Benefits

GUARANTEES CONSISTENT WATERPRESSURE

ULTRA LOW NOISE

NO VIBRATIONS

EASY TO ADJUST

EQUIPPED WITH A LARGE DISPLAY

EXTREMELY COMPACT SIZES

QUICK TO INSTALL

INSTALLATION OPTIONS:

HORIZONTAL, VERTICAL

REDUCED ENERGY CONSUMPTION EASY MAINTENANCE
