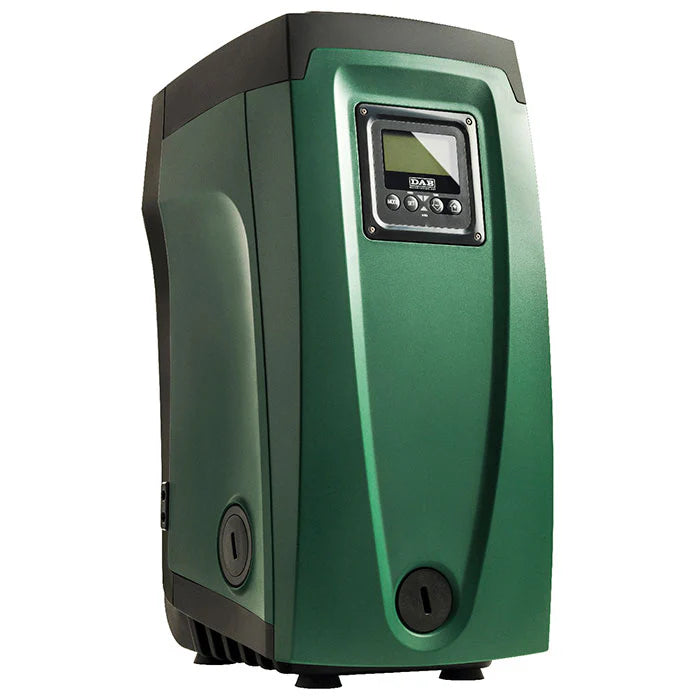

DAB ESYBOX Electronic Water Pressure System

The Esybox is an integrated electronic water pressure booster system designed for domestic and residential use. Its advanced inverter system delivers the comfort of constant water pressure while ensuring energy efficiency.

Developed by DAB, the Esybox is a complete pressurization system that requires no additional components for installation.

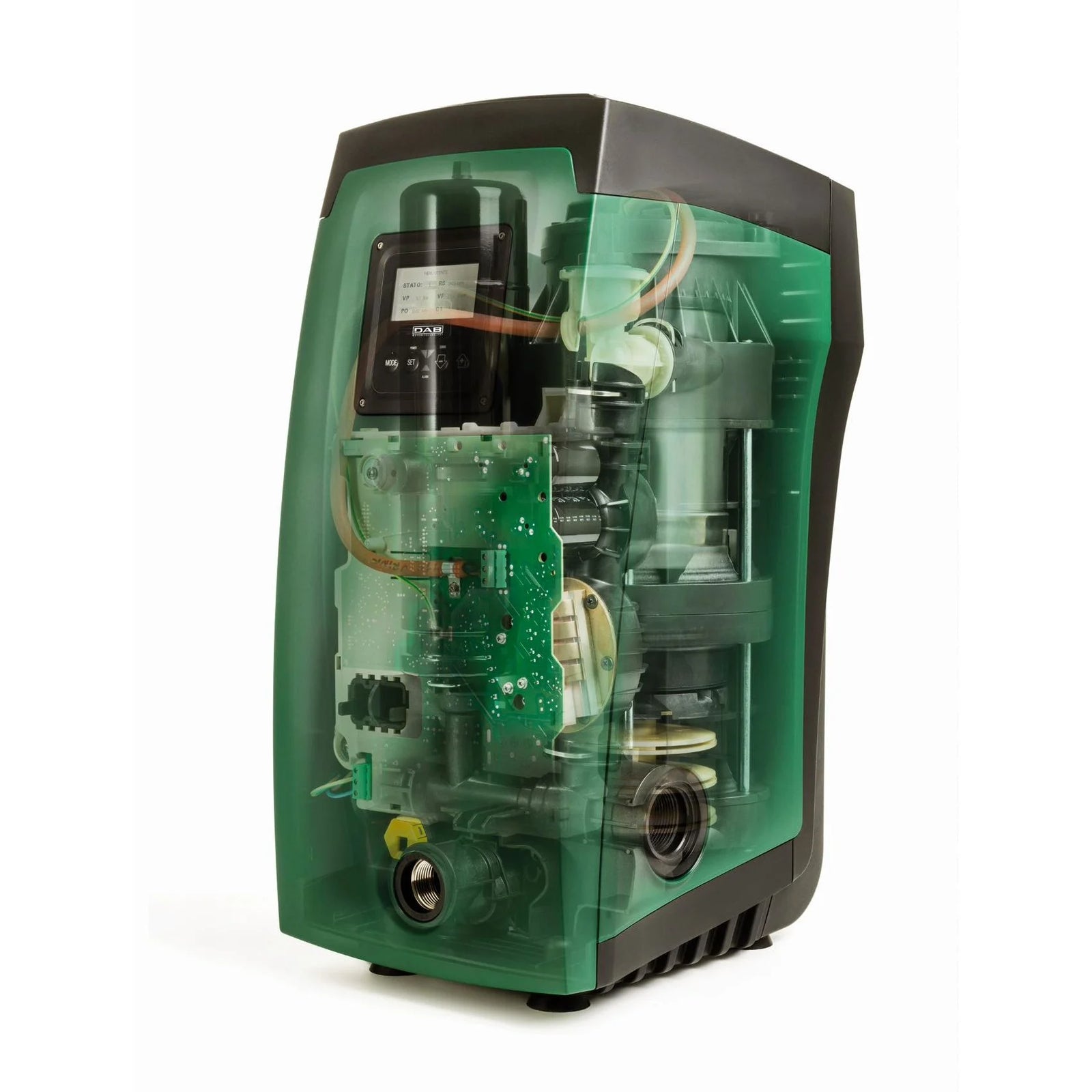

It includes essential components such as a multistage self-priming pump with electronic inverter control, flow and pressure sensors, a high-resolution LCD display, and a built-in 0.5-gallon expansion tank. Its flexible design allows for both vertical and horizontal installation, making it suitable even for compact spaces with limited air circulation.

The system features a water-cooled motor, durable sound-absorbing ABS hull protection, vibration-damping feet, and sophisticated electronics.

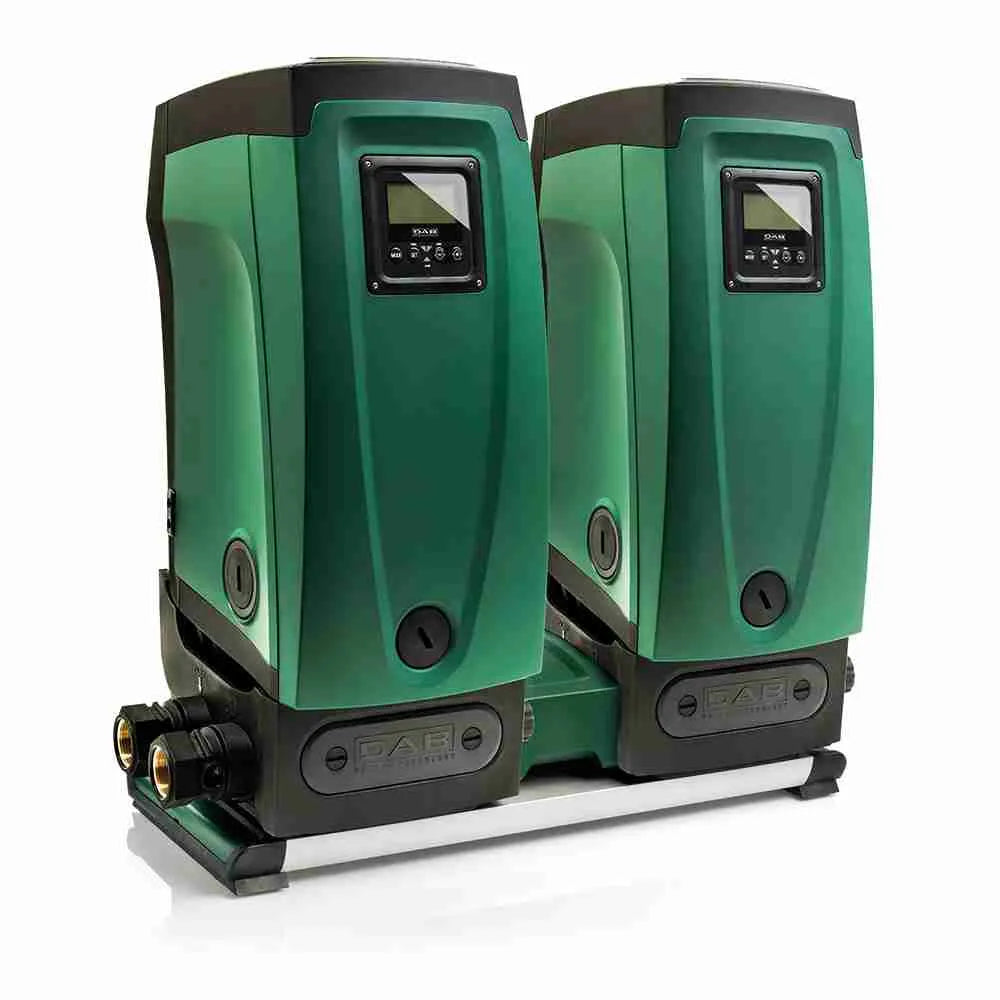

These elements work together to keep the Esybox running quietly at just 43 decibels. The Esybox also offers wireless capabilities, allowing for easy setup of multi-pump pressurization units and seamless integration with other DAB devices.

In summary, the Esybox is a compact, reliable pressurization system for domestic and residential applications. Its simplified installation process, quiet operation, and wireless connectivity make it an ideal choice for consistent water pressure and high performance.

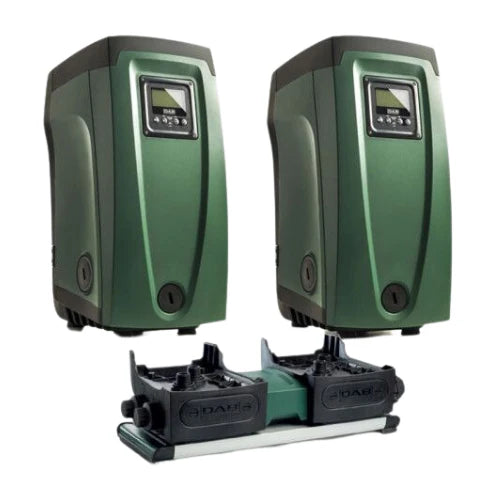

The Esybox includes a self-priming, multi-stage pump with electronic inverter management, pressure and flow sensors, an adjustable high-resolution LCD display, and a built-in 0.5-gallon expansion tank. It can be installed vertically or horizontally in enclosed spaces with limited air exchange. Various accessories (Esywall, Esydock, Esytwin, Esytank) offer multiple installation options.

Equipped with a water-cooled motor, sound-damping ABS hull, anti-vibration feet, and advanced electronics, this compact unit operates very quietly, producing just 45 dB under normal conditions. Its wireless system enables seamless creation of pressurization groups and easy connectivity with other DAB devices, such as Esylink.

TECHNICAL DATA

• Operating range: capacity up to 32 gpm; head up to 210 ft.
• Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, un-crystallized and chemically neutral.
• Liquid temperature range: from 32°F to +95°F for domestic use or from 32°F to +104°C for other uses
• Maximum suction depth: 26 ft
• Maximum ambient temperature: +102°F
• Maximum withstandable pressure: 118 psi (8 bar / 800 kPa)
• Motor protection rating: IPX4
• Insulation class: F
• Installation: Horizontal or vertical fixed position
• Power Supply: 230v50-60Hz
