LEDzx F630

Available: In Stock
$868.00 $914.00
Successful pre-order.Thanks for contacting us!
  • 110V-277V wide voltage design, available with different NEMA power plugs for a wider range of voltage used.

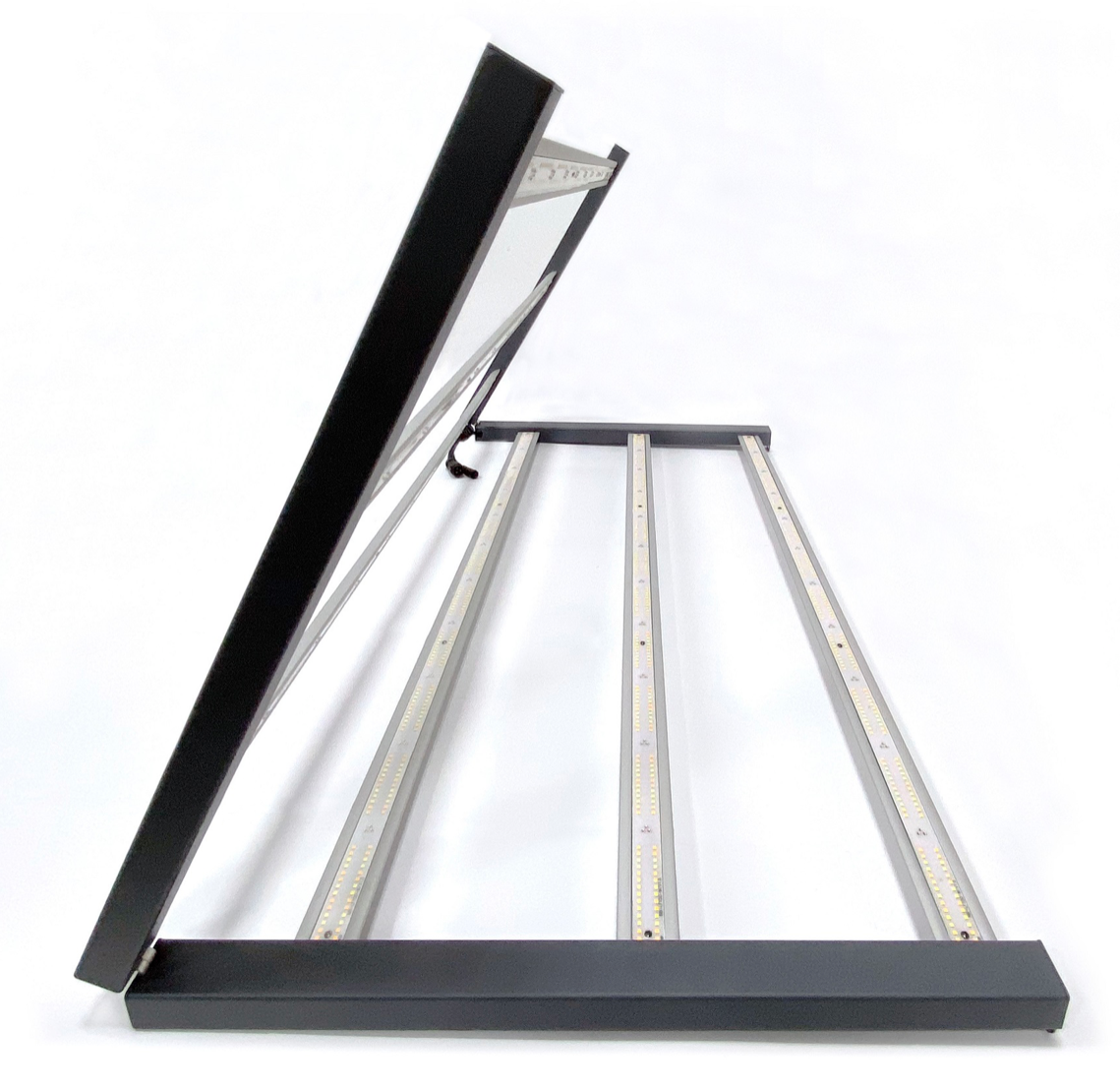

  • Folding design facilitates transportation and saves on shipping and storage costs.
  • Modular patented design.
  • Digital control buttons are used for smart digital dimming with dimming ranges of 105W, 210W, 315W, 420W, 525W, and 630W
  • Smart digital bar protection system: Upon one or more bar failures the system will digitally protect working bars and the power supply allowing for continuous ongoing operation.
  • IP65 design protects against environmental conditions such as moisture and dust.
  • Included features: Random start, soft start, soft dimming, over-temperature, over-voltage and open/short circuit protection.
  • Compatible with various 0-10V control systems.

Uses Sanan high-quality horticultural chips

Foldable for easy handling Wide input voltage

110V-277V Light weight & compact design

0-10V wired lighting control

Light Output PPF 1650 μmol/s
Efficiency 2.62 μmol/J
Dimming 0-10V
Input Power 630W
Input Voltage AC 110V-277V
Input Frequency 50/60Hz
Light Distribution 120°
Mounting Height 8”- 20” (20-50cm) above canopy
Operating Temperature 0°C~35°C
Operating Humidity 0~95%
Thermal Management Passive
Power Factor > 0.97
Total Harmonic Distortion < 10%
Requirement of Installment Comply with ETL/FCC/CE/EAC certificate
Lifetime L90 > 50,000hrs
IP rating IP65
Product Dimensions 1200x1150x70mm
Product Weight 10.6KG
Packaging Method 1PC/Carton (LED fixture with Driver)
Packing Dimensions 1215x590x95mm
Gross Weight 12.2KG
Warranty 5 year standard warranty

Nominal Electrical AC Input*
