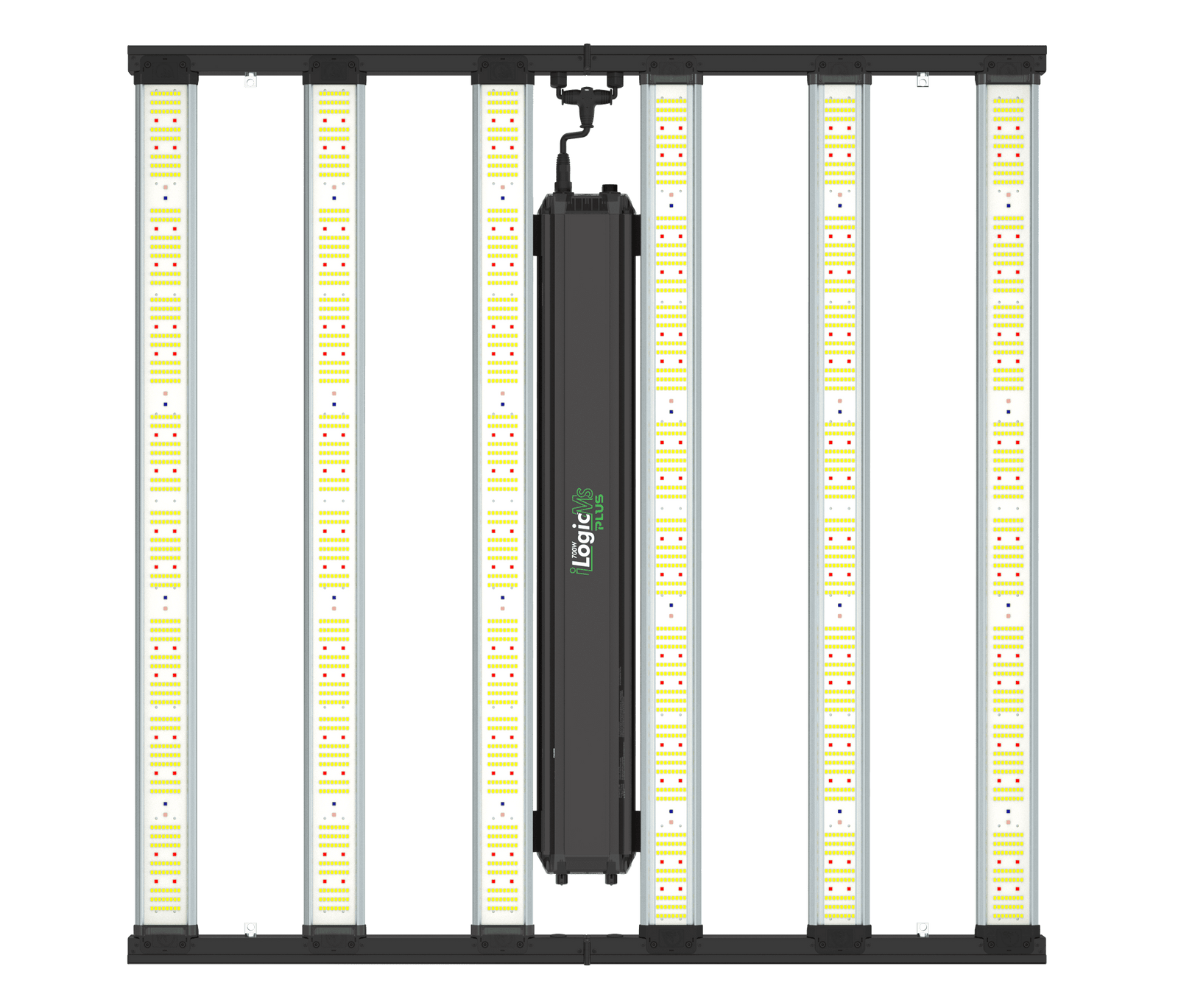

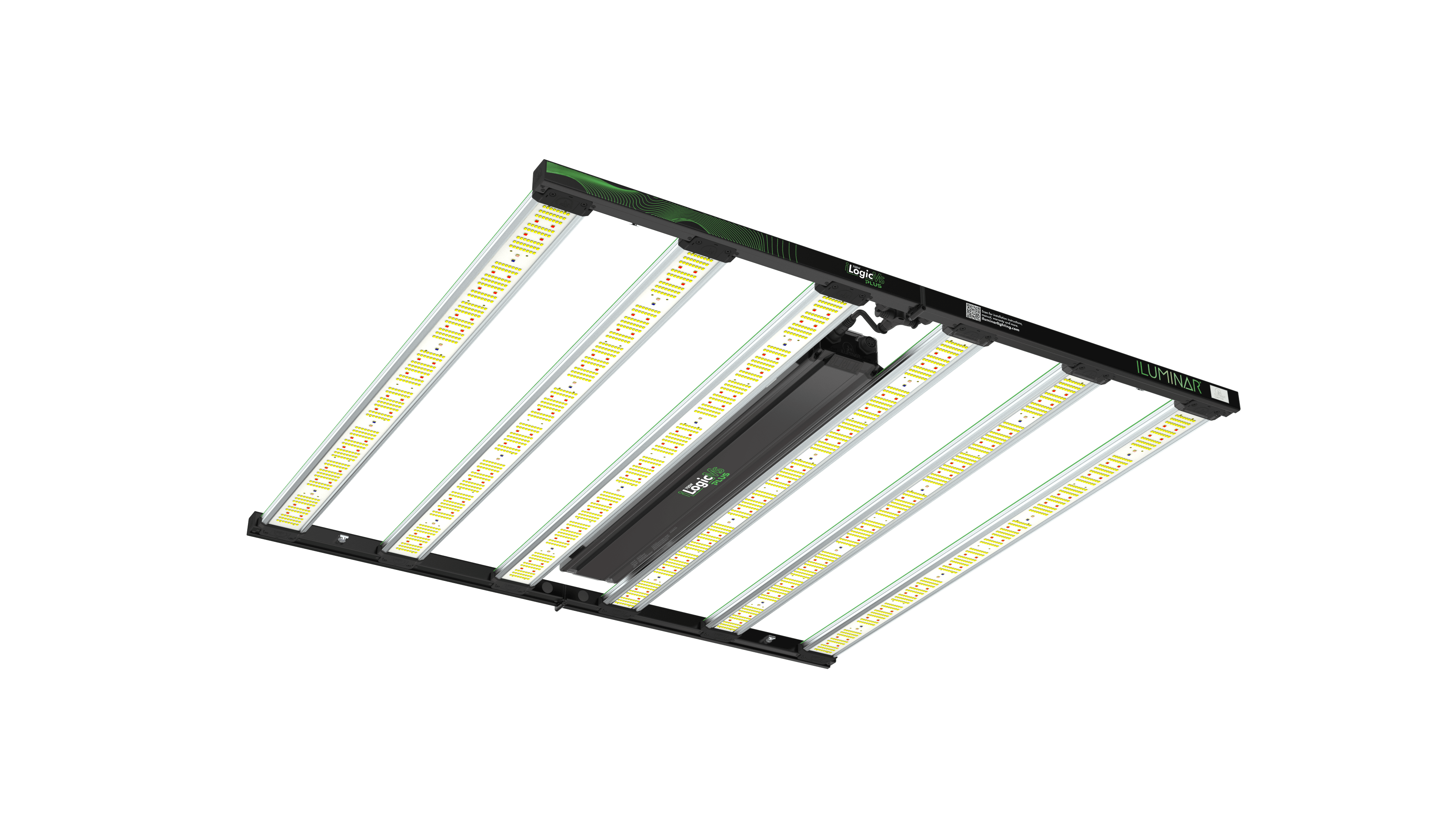

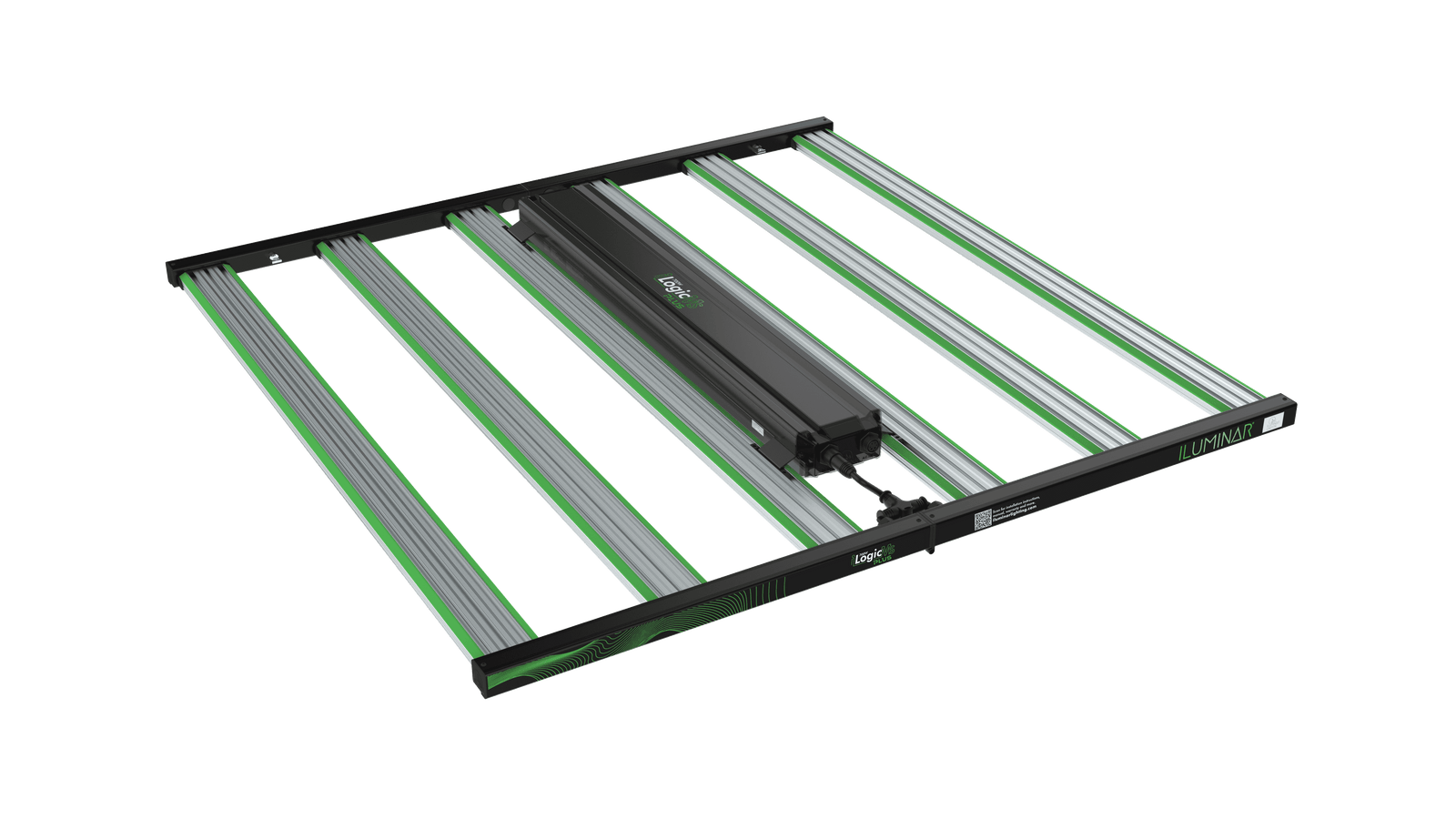

iLogic™ 700W Multi Spectrum Plus

New Generation High Intensity LED Lighting

The iLogic™ MS Plus 700W is our new powerhouse full life-cycle / flowering LED lighting fixture featuring multi-channel control.

Now growers can precisely and independently specify the timing and intensity of far-red, UV-A, and full spectrum light output during the light-cycle. This fine-tuning functionality is ideal for cultivators looking to reduce transition time between vegetative growth and flowering as well as boosting the production of secondary metabolites.

Energy Efficiency

Powered by highly-reliable Sosen LED Drivers and delivering a Power Factor exceeding 0.9, the iLogic™ MS Plus 700W optimizes energy usage, reducing operational costs without compromising performance.

Versatile Control

Compatible with iLuminar’s external PAD controller or smartphone app, growers can precisely control light intensity and customize spectra for specific cultivars.

Daisy-Chain Capability

Daisy-chain up to 256 fixtures, helping to simplify installation and management for larger setups.

High PPF Output

We've broken the 2000 barrier using just 700 watts of power! Boasting an incredible Photosynthetic Photon Flux (PPF) output of 2030 µmol/s combined with an outstanding efficacy of 2.9 µmol/J at full power, this fixture delivers the most intense illumination to drive full genetic expression, even in the most light-hungry cultivars.

Advanced, Tunable Spectrum LED for Indoor Floriculture

Harnessing the very latest LED technology, the iLogic™ MS Plus 700W combines 2520 Samsung LM281B+ Pro full spectrum diodes, 192 Honglitronic SMD3535 660nm diodes, 144 SMD3030 385nm UV diodes, and 144 SMD2835 730nm far-red diodes.

The timing and intensity of far-red, UV, and full spectrum diodes can be fully controlled throughout the light-cycle.

Full Spectrum 100% ON

Full Spectrum 100% ON + UV 100% ON

Full Spectrum 100% ON+ IR 100% ON

Full Spectrum 100% ON + UV 100% ON + IR 100% ON

UV 100% ON

IR 100% ON

Optional Upgrade: Iluminar Touch+ Grow Light Controller

The ILUMINAR Touch+ Controller will now allow you to control up to 60 lights per zone or room, with two channels you can control up to a total of 120 lights. This will take even your beginner garden to the commercial level, all of these features packed into the ILUMINAR Touch+ Controller.

The main difference between the Touch+ and the older Touch is greater dimming control. The old Touch controller could only control LEDs down to 50% dimming. The new Touch+ Controller can control dimming on LEDs all the way down to 20%

• LED + CMH + HPS All From One Controller
• Up to 120 Units, 60 fixtures per zone
• Control 2 Independent Rooms
• Auto Temperature Shut-Down
• Sunrise / Sunset Effects
• Battery Backup to Save Data
• Dual Temperature Zone input for High Heat Dimming
• Dual Temperature Probe Inputs
• Touch Screen Technology
• RJ9 to RJ14 cable included
