GrowControl™ VX8i Intelligent 8-Valve Irrigation Controller

SKU: vx8psu

Price: $459

Quantity

Product Description

Irrigation Valve Controller

Eight (8) 24V AC or DC Outputs for WX and BV Series Valves

High Current FETs with Flyback and Surge Suppression

Digital Control, Addressable

GrowNET™ port, MODBUS

Made in USA

Description

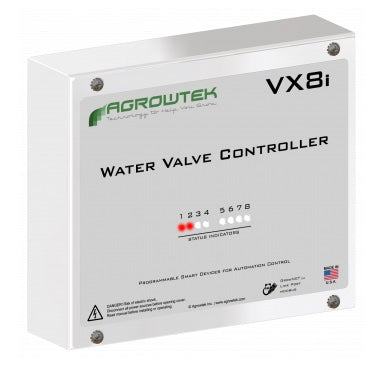

GrowControl™ VX series I/O modules feature high-current outputs for controlling either AC or DC irrigation valves. Designed to operate either standard WX series electric diaphragm water valves or BV series DC motorized ball valves with selectable AC or DC output mode. Operates valves independently, or up to four valves simultaneously. A high-current 24V power supply is included for driving the valves from the VX controller.

Connects instantly to Agrowtek's Growcontrol™ GCX Cultivation Controls via GrowNET™ for advanced automated control functions. LED indicators on the front panel provide status of each valve output. Rugged metal enclosure for wall mounting. Valve outputs rated 1A max/combined and include flyback protection and surge suppression on each output. Conduit knock-outs and screw terminals for easy electrical installation.

Flexible and reliable valve and DC load controller suitable for many applications. Built on a decade of proven technology and components with new, enhanced capabilities to meet the growing demand for highly reliable environmental control applications.

VXP valve controllers are UL Listed for U.S. and Canada.

VXP8 Valve Panel Option

VXP valve panel option includes the VX8i controller, water valves and a 1" manifold all pre-fabricated and mounted on a stainless steel back panel. Available with diaphragm or motorized ball valves.

MODBUS

GrowNET™ port accepts MODBUS RTU communication for PLC control. Internal digital controller operates relays with MODBUS commands and logs the total number or relay contact closures for each relay in memory. Easily recall manufacturing info such as unit serial number, date of manufacture, contact count, status, etc.
