GrowControl™ DXV4 0-10V DC Output Module 24V

4-Output 0-10V DC Dimming Module

0-10V (11V max) DC Outputs

Drive up to 50 Fixtures per Channel

Digital Control, MODBUS Addressable

Made in USA

Description

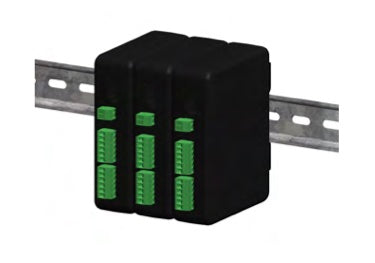

GrowControl™ DXV4 modules for DIN rail feature four (4) 0-10V analog outputs for dimming lighting zones and other analog control. Dim up to 50 light fixtures per output channel.

DX series modules can be operated on 12-24Vdc. DXV4 modules perform with the highest accuracy on 24Vdc.

GrowNET™ port accepts MODBUS RTU communication for PLC control. Internal digital controller operates relays with MODBUS commands and logs the total number or relay contact closures for each relay in memory. Easily recall manufacturing info such as unit serial number, date of manufacture, contact count, status, etc.
