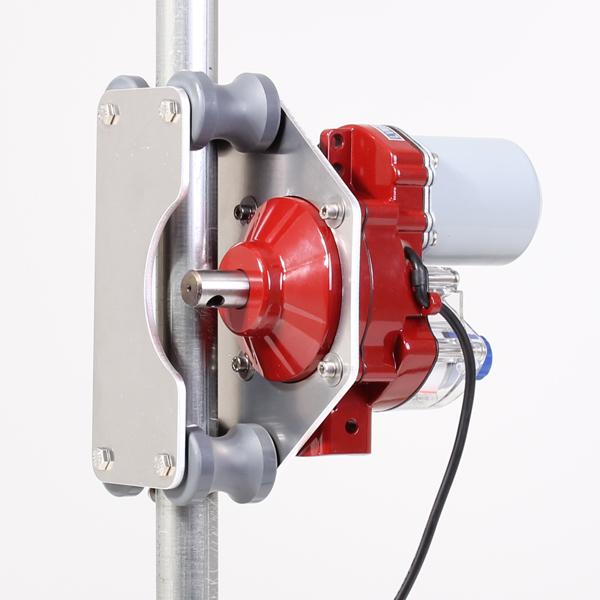

60 NM greenhouse curtain motor is designed to lift up to a 1250 sq. ft. single bar curtain or up to 625 sq. ft. double bar curtain (square footage measured Length X Width)

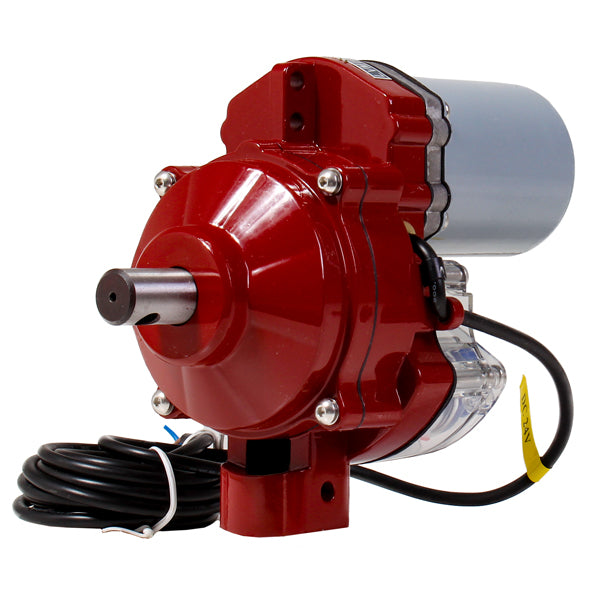

100 NM greenhouse curtain motor is designed to lift up to a 1750 sq. ft. single bar curtain or up to 875 sq. ft. double bar curtain.

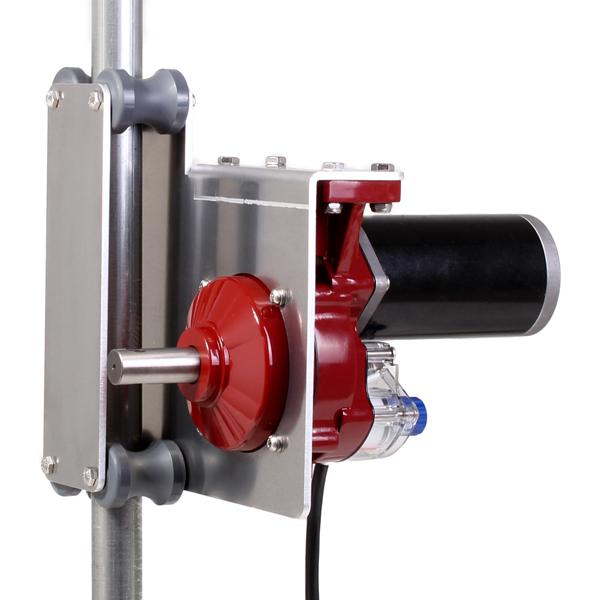

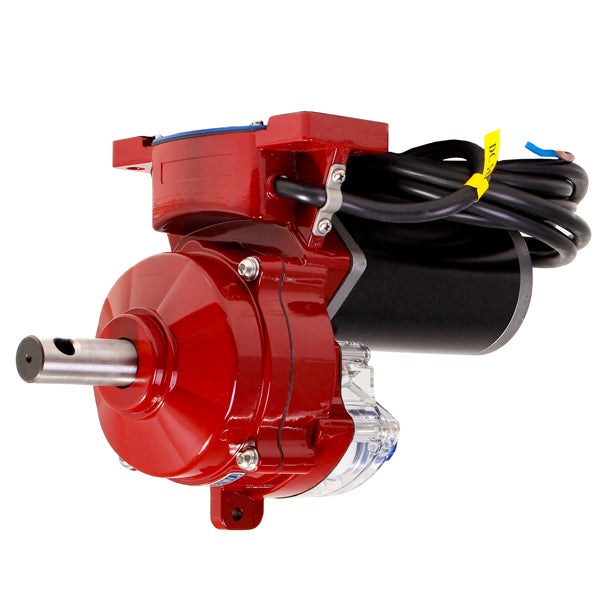

The LVM180 Light Deprivation Curtain Motor can also be used to pull other heavier greenhouse curtains and vents. The 180 NM motor is stronger than the 60 NM or 100 NM option and is designed to lift up to a 3000 sq. ft. single bar curtain or up to 1500 sq. ft. double bar curtain (square footage measured Length X Width).
Light Dep Curtain Motors are specially designed for roll to peak light deprivation and greenhouse curtain applications. There are two buying options for the motor equipped with a roller guide wheel set, or just the motor alone. You can connect the motor to a new or existing controller box for fully automated timed use.
Features
- Single output, low voltage, DC motor
- 4 Year Warranty for a lower total cost of ownership
- Low-bind guide wheels for longer motor life
- Innovative roll bar adapter system for multiple roll bar adapters
- Easy access limit switches (directional limits)
- Compact, quiet, and lightweight
- 180 NM Motor Specifications: 24 VDC, 180 NM, 8A, 200 W, 4.5 RPM, 40 Rev, 0.875″ (22mm) OD output shaft
- 60 NM Motor Specifications: 24 VDC, 60 NM, 3A, 72 W, 2.7 RPM, 40 Rev, 0.78″ (20mm) OD output shaft
- 100 NM Motor Specifications: 24 VDC, 100 NM, 4.2A, 100 W, 3 RPM, 40 Rev, 0.78″ (20mm) OD output shaft
