New York receives significant precipitation which can negatively impact the way the system rolls up and down. The excess weight from precipitation can cause the motors to burn out. We recommend our dual frame internal light deprivation system for your area.
New York has higher than average humidity during the summer months which greatly reduces the effectiveness of the evaporative cooling system. Use historical weather averages to understand your climate during the growing season and opt for a wet wall if your humidity is below 70% Example from UMASS: 90 degree outside air @30% humidity = 30 degrees of cooling @50% humidity = 20 degrees of cooling @70% humidity = 8 degrees of cooling
Yes! Upgrading your environmental control system to the competitively priced agrowtek gcx is necessary in any instances where you are using artificial lighting, heating, or want programmable controls with different stages of heating/cooling. Example features include: Turning lights on and off based on cloud cover, interrupting functions such as heat when the exhaust fan turns on, using heat or cooling stages to even out the temp/humidity swings to create more consistent growing conditions. Analog controls can be used if you are just concerned with one or two variables. Be aware that if the heater and exhaust fans are on separate thermostats, they can both get stuck on at the same time, this will drain the propane tank and prevent the greenhouse from getting up to temp.
In New York (Latitude ~40°+): 1 Light Dep + 1 Full-Season Harvest Daylight for Vegetative Growth: Begins mid-May (~14+ hours of daylight).
Natural Flower Trigger: ~August 15 (12–13 hours of daylight).Full-Season Harvest: Mid-October (60 days from natural flowering trigger).
Harvest Schedule:Light Dep Vegetative Growth: Mid-May to Mid-June (30 days, >14 hours of daylight).
Light Dep Harvest: Mid-August (60 days flowering, starts mid-June).
Full-Season Vegetative Growth: Natural vegetative period continues until August 15.
Full-Season Harvest: Mid-October (60 days flowering, natural trigger mid-August).
Total Harvests: 2 harvests (1 light dep + 1 full season).
In New York, single-span greenhouses are a cost-effective solution for small farmers. They shed snow efficiently, are quicker and cheaper to build, and their independent structure minimizes the risk of pest and pathogen spread. While gutter-connect greenhouses offer scalability, they come with higher upfront costs, longer construction timelines, and greater risks of disease spread due to shared systems.
To grow year round in New York you will need to control all of the environmental variables to maintain consistent growing conditions. Dual Frame Insulated Greenhouse-Hortitech's dual frame design can grow year round in any state. The internal light deprivation system is protected from weather elements and the 2ft thermal air gap provides superior insulation. Photo period- Use artificial lighting to supplement when days are short to maintain enough DLI to keep plants in vegetative state or to provide enough energy to flower on cloudy winter days. Use light deprivation to shorten the days during spring and summer to maintain flowering cycles. Temperature- Use intake shutters/exhaust fans with light traps to cool and dehumidify the greenhouse during the summer and as needed in shoulder seasons. Use a greenhouse heater to maintain optimal growing conditions year round and to prevent freezing during the winter. Dehumidifiers- During the cooler months when the exhaust fans are not running as often, you will need dehumidifiers to offset the humidity from plant transpiration. All of the water put into the growing media will transpire through the plant and become air borne. Mismanaging humidity will lead to botrytis and powdery mildew.

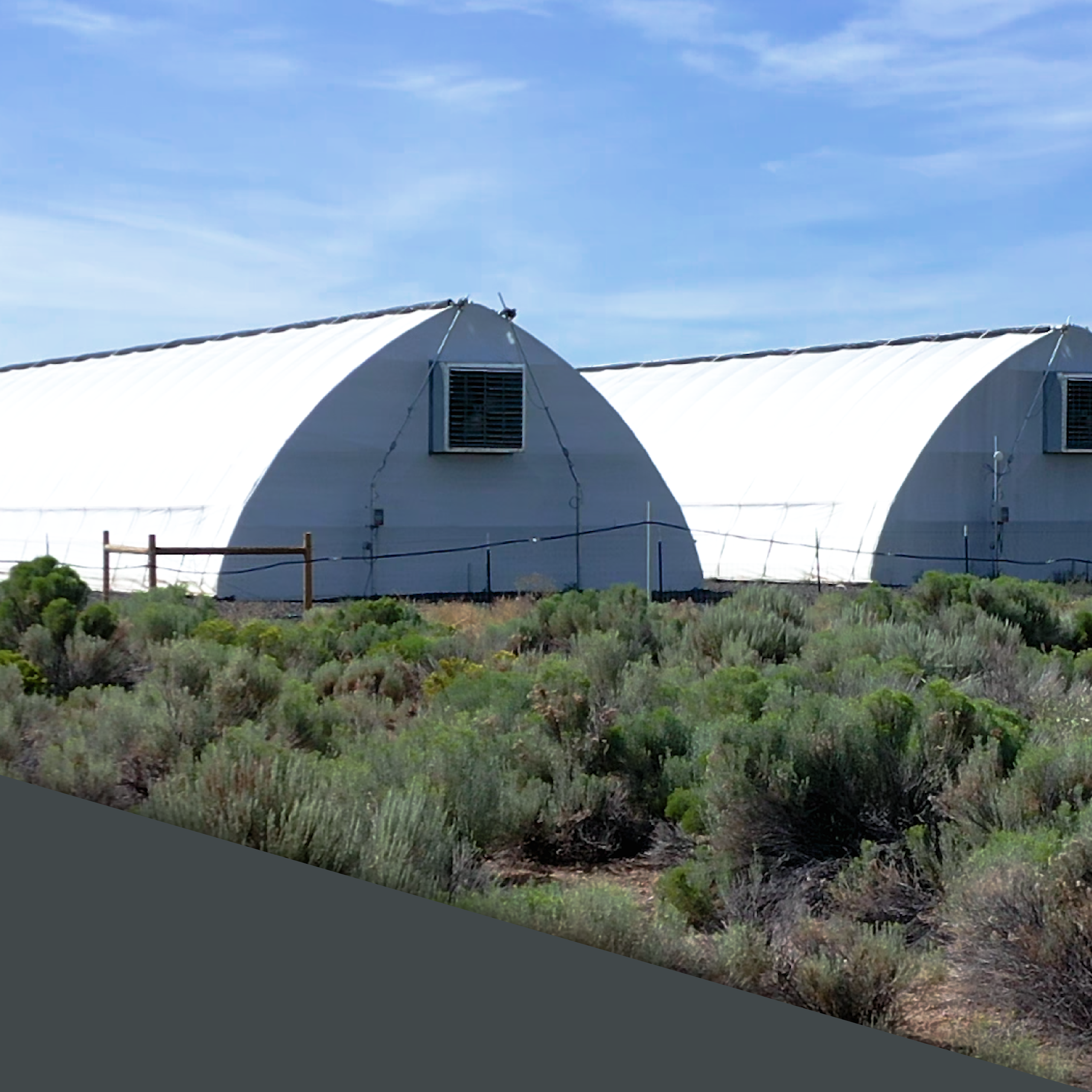

Semi Gable frames are used in areas with snow and high humidity. The steep pitch of our semi gable frame allows for the snow to shed on its own. The increased peak height allows for heat and humidity to rise off the plant canopy and be exhausted by a peak fan.
Yes! woven plastics are mandatory with roll to peak light deprivation systems. These systems take time to install, and you'll want to make the most of your investment by using thick plastic, do not use anything less than 9mil. An added benefit Hortitech's clear light dep plastic is that we can weld blackout overlaps into the clear plastic creating a perimeter light seal. This saves on labor and materials, eliminating the need for extra channel, wiggle wire, or lumber.
Galvanized Steel End Walls
Truss Spacing: Standard 5ft

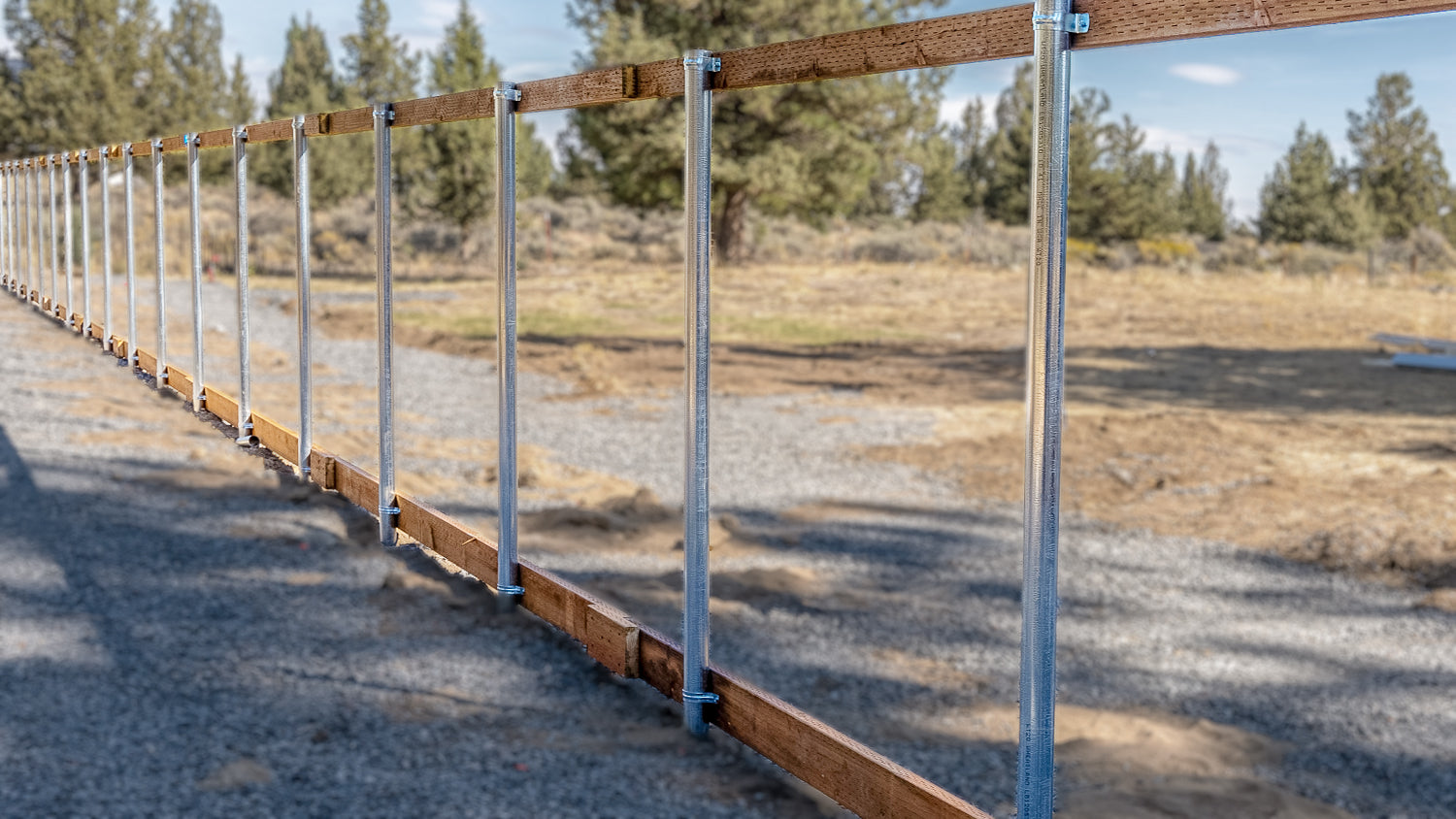

Sidewall Height: Standard 6ft
Evaporative Cooling System
Click each (+) below for more info on each component
Spins roll bar to raise or lower blackout cover. Can be replaced with manual chain crank.
Secures retention straps running over greenhouse with adjustable tension.

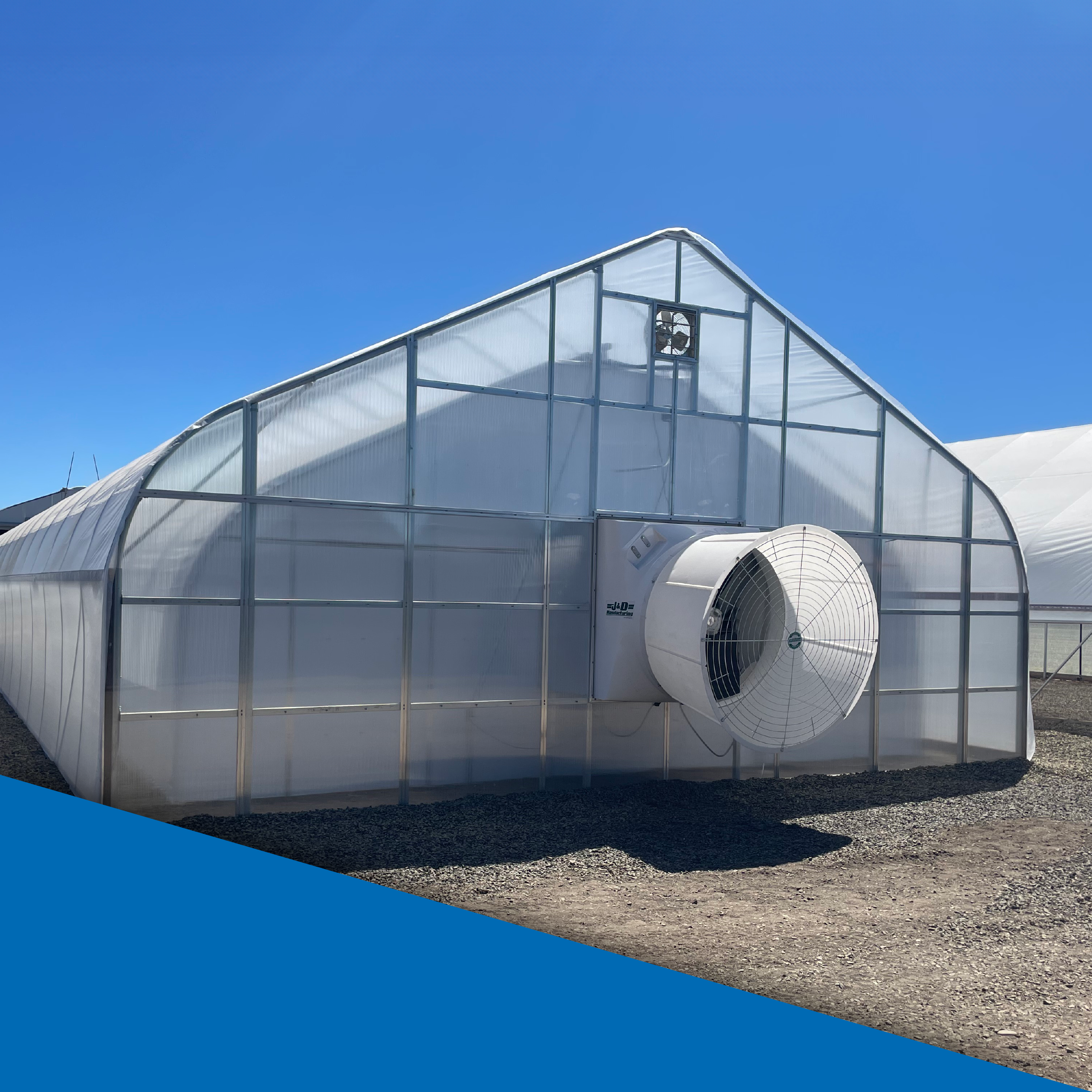

Opens with exhaust fans to exchange greenhouse air in one minute.
Channel mounted to frame, used with wiggle wire to fasten cover to greenhouse without damaging plastic.
Allows the motor/chain crank to travel up and down the structure.
Allows air in while keeping light out to ensure complete darkness.
Ran over top of greenhouse, winched in to both sides to prevent roll bar from being displaced.
Custom-made plastic includes blackout skirting to prevent light leaks at the baseboard.
2" aluminum rollbar with built-in wirelock base.
Opaque cover blocks out light from the end wall.
Clear woven plastic cover sits under the blackout cover which allows light in while the blackout is rolled up.
Spins roll bar to raise or lower blackout cover. Can be replaced with manual chain crank.
Secures retention straps running over greenhouse with adjustable tension.
Opens with exhaust fans to exchange greenhouse air in one minute.
Channel mounted to frame, used with wiggle wire to fasten cover to greenhouse without damaging plastic.
Allows the motor/chain crank to travel up and down the structure.
Allows air in while keeping light out to ensure complete darkness.
Ran over top of greenhouse, winched in to both sides to prevent roll bar from being displaced.
Custom-made plastic includes blackout skirting to prevent light leaks at the baseboard.
2" aluminum rollbar with built-in wirelock base.
Opaque cover blocks out light from the end wall.
Clear woven plastic cover sits under the blackout cover which allows light in while the blackout is rolled up.

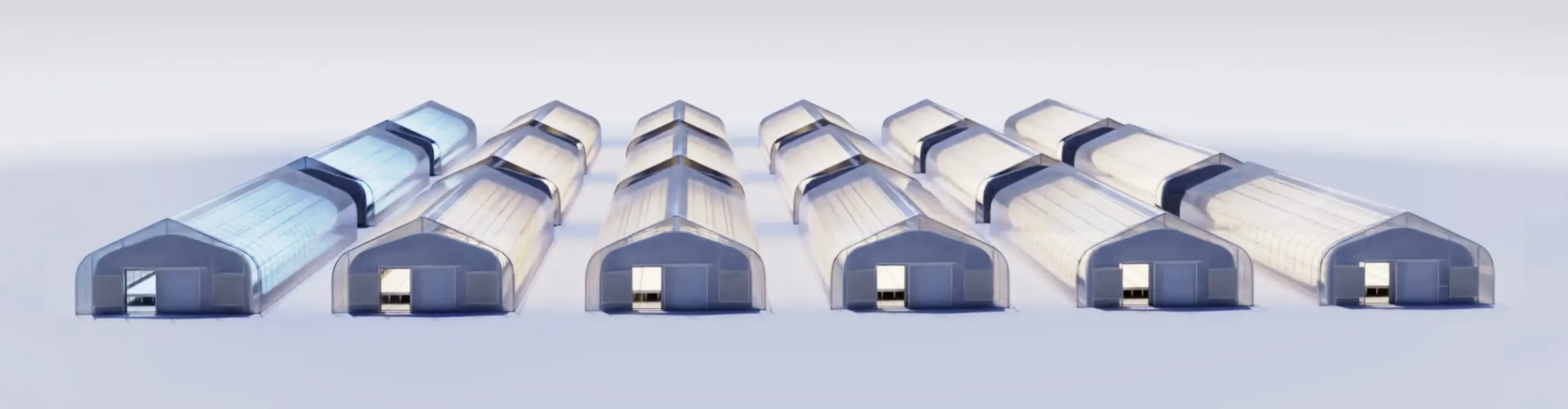

A modern, scalable, controlled approach to top shelf flower cultivation

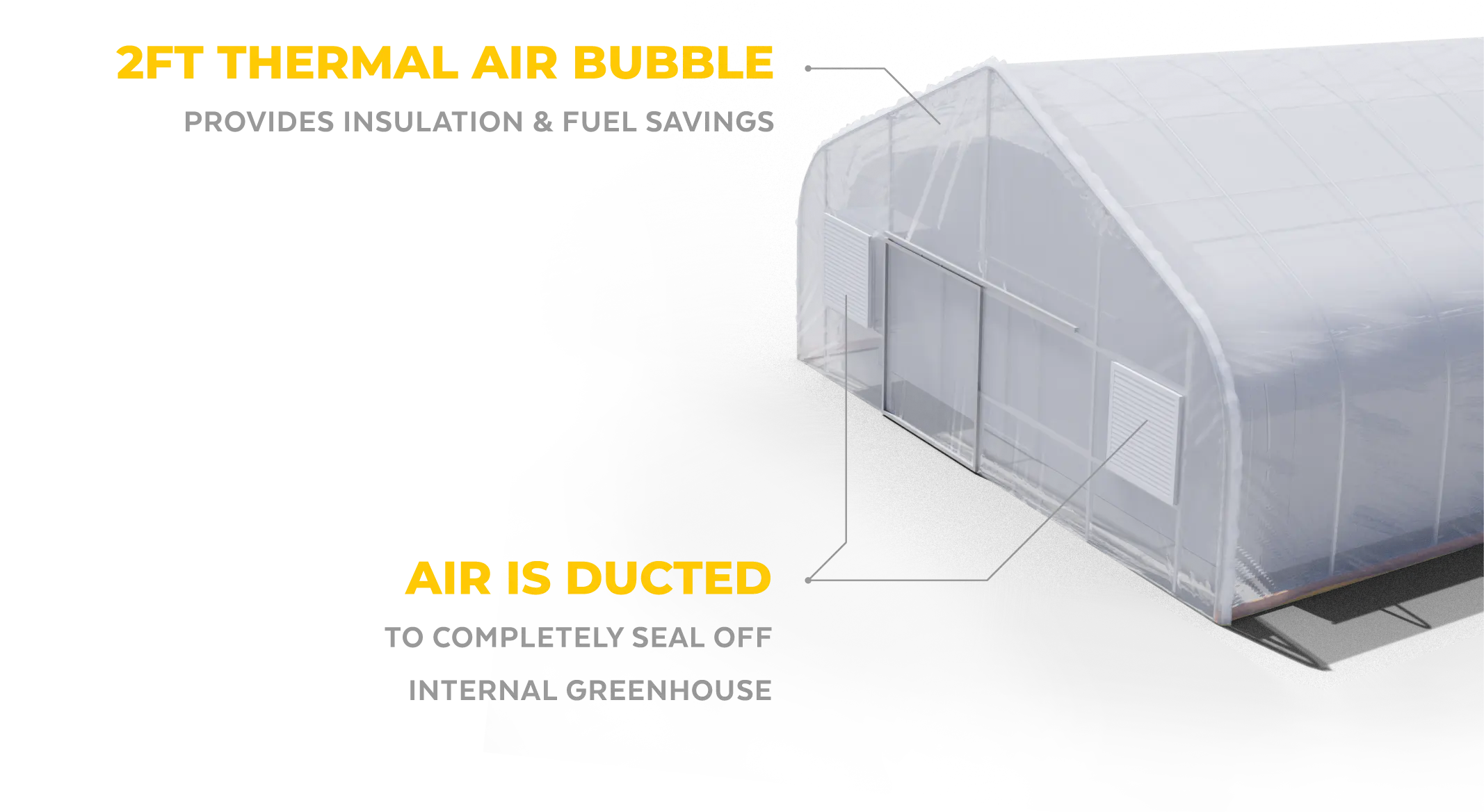

The Auto Internal Light Deprivation Kit is complete and ready to go. Kit includes a 1 7/8" x 2 3/8" frame that's 26'x96' inside a 30'x100' frame. The inside frame is completely sealed with air ducted through the end walls to create a 2ft thermal air "bubble" around the growing space. A full ventilation system includes a 400k BTU heater, exhaust fans, automated louvers, and HAF fans to help lower humidity. Woven membranes with a 4 year warranty insures protection from the elements. A fully automated light deprivation package makes controlling the light cycle effortless with 2 powerful 100nm motors and a programmable controller. Includes all necessary accessories for all core functions. Lumber and cement to be purchased separately.
Key features:
Hyper controlled environments
Each greenhouse can be set up to revolve through each stage of plant growth resulting in ideal growing conditions
Rapid speed to market
Option of growing your operation organically with smaller initial investment
Modular scalability
Highly scalable add structures in phases
Improved risk mitigation
Refine proof of concept at smaller scale and expand with confidence
Fewer parts to maintain (less moving parts)
Fewer parts are easier to maintain, simpler to construct, and have fewer (minimal) points of failure
Lower startup & recurring costs
Significantly more economical per square foot, even at scale, fewer initial costs
Fast construction
Build 3 structures in less than a month (9,000 sq/f total)
Resilience to total crop failure
Isolated production areas protect crops from the spread of pathogens & pests
Rapid tax depreciation
Non-permanent structures are considered personal property and have strategic tax advantages
Simpler land requirements
Multiple isolated greenhouses don't require one continuous flat plane
!
